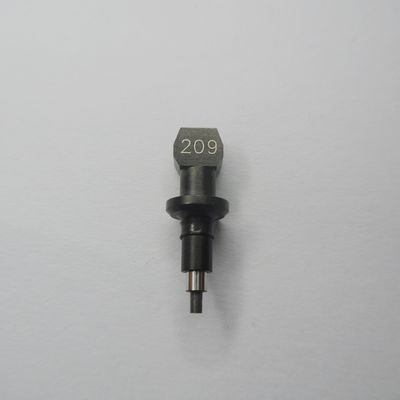

209A YAMAHA YG200 KGT-M7790-A0X用のピックアンドプレース真空ノズル

YAMAHA ノズル部品番号:

KV8-M7710-A1X NOZZLE 71A ASSY.

KV8-M7720-A1X NOZZLE 72A ASSY.

KV8-M7730-00X NOZZLE 73A

KV8-M7740-A0X NOZZLE 74A

KV8-M7760-00X NOZZLE 76A

KM0-M711A-31X TYPE 31

KM0-M711C-02X TYPE 32

KM0-M711D-00X TYPE 33

KM0-M711E-00X TYPE 34

KG7-M71AB-A0X TYPE 35

KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F A

KV8-M71N2-A0X NOZZLE 72F ASSY 1 TYPE72F A

KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F

KGT-M7710-A0X NOZZLE 201A ASSY. 1 Type 201A

KGT-M7720-A0X NOZZLE 202A ASSY. 1 Type 202A

KGT-M7730-A1X NOZZLE 203A ASSY. 1 Type 203A

KGT-M7760-A0X NOZZLE 206A ASSY. 1 Type 206A

KGT-M7790-A0X NOZZLE 209A ASSY. 1 Type 209A

KV8-M711N-A0X NOZZLE & SHAFT ASSY. 1

KV8-M71U0-01X NOZZLE ASSY. 1 71/ 72/ 73F

KV8-M71N1-A0X NOZZLE 71F ASSY. 1

KV8-M71U5-00X SCREW 2

KV8-M71N2-A0X NOZZLE 72F ASSY. 1

KV8-M71N3-A0X NOZZLE 73F ASSY. 1

KV8-M87XD-A0X NOZZLE 73F-D ASSY. 1 Op.

KV8-M71U8-00X BLOCK, NOZZLE 1

KV8-M71R1-10X SHAFT 1 1

KV8-M71R1-20X SHAFT 1 1

KV8-M71R1-30X SHAFT 1 1

KV8-M712N-A0X NOZZLE & SHAFT ASSY. 1

KV8-M71U0-10X NOZZLE ASSY. 1 71/ 79/ 73F

KV8-M71N9-A0X NOZZLE 79F ASSY. 1

KV8-M713N-A0X BLOCK & NOZZLE ASSY

KV7-M7710-A1X NOZZLE 61A ASSY.

KV7-M7713-00X O-RING

90200-02J015 O-RING

KV7-M7720-A1X NOZZLE 62A ASSY.

KV7-M7730-00X NOZZLE 63A

KV7-M7740-A0X NOZZLE 64A ASSY.

KV7-M7741-00X BODY. NOZZLE 64A

KGB-M7742-00X O-RING

90990-17J013 O-RING

KV7-M7750-A0X NOZZLE 65A ASSY.

KV7-M7751-00X BODY. NOZZLE 65A

KGA-M7752-00X O-RING

90990-17J013 O-RING

KV7-M7760-00X NOZZLE 66A

KV7-M77GX-A0X CIRCLE NOZZLE 6A

KV7-M7790-A0X NOZZLE 69A ASSY.

Machine Assembleon MG-Series

P/N: KGT-M7710-A0 Des: Nozzle,#201 0.6 / 0.8

P/N: 9498 396 01480 Des: Nozzle,#202 1.0 / 1.7

P/N: KGT-M7790-A0 Des: Nozzle,#209 1.2 / 0.65

Machine

P/N: PA 2962/47 (5322 360 10493) Des: Nozzle,#71A (0.6/0.8)

P/N: PA 2962/48 (5322 360 10494) Des: Nozzle,#72A (1.0/1.7)

P/N: PA 2962/45 (9965 000 02777) Des: Nozzle,#73A (4.0/3.0/2.0)

P/N: PA 2962/44 (5322 360 10495) Des: Nozzle,#74A (O-ring)

P/N: PA 2962/46 (5322 360 10496) Des: Nozzle,#76A, MELF

P/N: PA 2962/38 (5322 360 10484) Des: Nozzle,#71F

P/N: PA 2962/39 (5322 360 10485) Des: Nozzle,#72F

P/N: PA 2962/40 (5322 360 10486) Des: Nozzle,#73F

P/N: SPECIAL

Machine Assembleon Topaz, Emerald

P/N: 5322 360 10198 (PA2962/75) Des: Nozzle,#31 (UFO Tip) without Spring

P/N: 5322 360 10433 Des: Nozzle,#31 (Round Tip) Special type, without Spring

P/N: 5322 360 10425 (PA2962/78) Des: Nozzle,#31 (X Tip, 1.0/1.2) Spring loaded

P/N: 5322 360 10199 (PA 2962/71) Des: Nozzle,#32-1 with Reflector

P/N: 5322 360 10201 (PA 2962/72) Des: Nozzle,#32-2 (4.0/3.0/2.0)

P/N: 5322 360 10202 (PA 2962/73) Des: Nozzle,#33

P/N: 5322 360 10203 (PA 2962/74) Des: Nozzle,#34

P/N: 5322 360 10272 (PA2962/76) Des: Nozzle,#35, Melf

P/N: SPECIAL Des: Nozzle,Connector Nozzles

Machine Assembleon Emerald-X(i)II

P/N: PA 2962/97 Des: Nozzle,61A 0.9 / 0.5

P/N: PA 2962/98 Des: Nozzle,62A 1.0 / 1.7

P/N: 5322 360 10476 (PA 2962/93) Des: Nozzle,63A

P/N: 5322 360 10497 Des: Nozzle,64A

P/N: 5322 360 10477 Des: Nozzle,65A

P/N: KV7-M71N1-A0X Des: Nozzle,61F 0.6 / 0.8

P/N: KV7-M71N2-A0X Des: Nozzle,62F 1.0 / 1.7

P/N: KV7-M71N3-A1X Des: Nozzle,63F

P/N: KV7-M71N4-A0X Des: Nozzle,64F

P/N: KV7-M71N5-A0X Des: Nozzle,62F

Machine Assembleon Sapphire, Comet

P/N: 5332 360 10335 Des: Nozzle,Type 51 0.9 / 0.5

P/N: 5322 479 60083 Des: Nozzle,Type 52 1.4 / 0.8

P/N: 5322 479 60084 Des: Nozzle,Type 53 3.0 / 2.0

P/N: 5322 360 10289 Des: Nozzle,Type 54 6.0 / 4.0

P/N: 5322 360 10219 Des: Nozzle,Type 55 10.0 / 8.0
